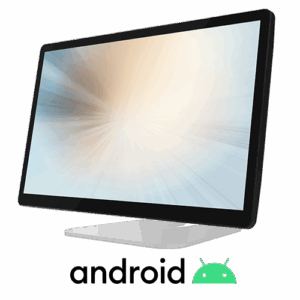

IC-215P-AA2

Model Number

Stand sold separately - Part #SS-156-A1

Description

The IC-215P-AA2 equipped with Rockchip’s latest architecture, the RK3399 combining low power consumption and high-performance computing into one integrated PC. The CPU’s performance combined with the ultra-slim aesthetic of this AiO works well in any environment. Loaded with the latest Android OS, 9.0 and Google Mobile Services, for easy plug-n-play functionality creates the opportunity for your team to easily incorporate this model into a new or existing application. From POS to an exposed kiosk, self-service to point of information, this product offers peripherals to support – MSR and Camera Module Kit, a wide range of applications, making it a perfect form – fit – function solution for a variety of applications.

Featured Specifications

Size: 21.5 ” TFT LCD
Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
OS: Android 9.0 with GMS
Maximum Resolution: 1920 x 1080
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
Brightness: 250 nits (No Touch), 225 nits (P-CAP)
View Angle: H:178˚, V:178˚
Video Port: 1 x HDMI, 1 x 3.0 Type A, 1 x 3.0 USB Type C (OTG support)
Warranty: 3 year

Resources

Drivers Data Sheet Overview Flyer Schematic Schematic Stand

Specifications

System Configuration

Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
GPU:Mali-T860 MP4
System Memory: 4GB LPDDR4
Storage Device: 32GB eMMC
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, Bluetooth 4.0 (Support BLE)
GPS: Enabled

Touch LCD Display

Size / Resolution: 21.5” TFT LCD / 1920 x 1080
Touch Screen: Projected Capacitive Touch, 10 Points
Brightness (Touch Type): 250 nits (No Touch), 225 nits (P-CAP)
Contrast Ratio: 1000:1
View Angle: H:178˚, V:178˚
Display Surface: 7H Hardness durable glass
Camera: –

I/O Ports

Serial Port: –
USB Port: 1 x USB 3.0 Type A, 1 x USB 3.0 Type C
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x HDMI (1080p 60Hz support)
Audio Port: 1 x Built-in Microphone
Power Input: 1 x DC in 12V/4.16A 2 pin
SD Slot: 1 x Micro SD Slot (SDHC 2.0 support)

Operating System Support

OS: Android 9.0 with GMS

Physical Properties

Power Supply:

Speaker: 2 x 2W
Material: Plastic, Glass, SECC Metal
Light Bar: –
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 510.96 mm x 308.01 mm x 37.9 mm
Net Weight (kg): 4.0 kg
Gross Weight (kg): 6.2 kg
Carton (W x H x D) mm: 610 mm x 405 mm x 160 mm
VESA: 100 mm x 100 mm

Safety

Certifications: CE, FCC, LVD, UL, RoHS

Environment

Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing

Box Contents/What's in the Box

Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover

Optional Peripheral

MSR: MSR-215-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)

Optional/Replacement Accessories

50W Powers Supply | Adapter 12V 50W ADP-50YH BS W/Lock ERP: PS-3316005044F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
