Model Number

IC-156P-AA2

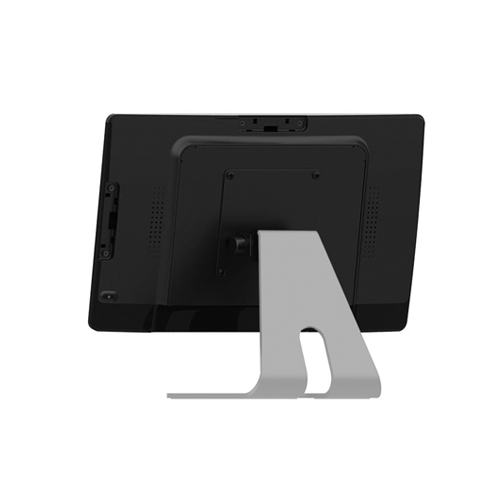

Stand sold separately - Part #SS-156-A1

Description

The IC-156P-AA2 is equipped with Rockchip’s latest architecture, the RK3399, combining low power consumption and high-performance computing into one integrated PC. The CPU’s performance combined with the ultra-slim aesthetic works well in any environment. Android OS 9.0 and Google Mobile Services create plug-n-play functionality and the opportunity for your team to easily incorporate this model into a new or existing application.  From POS to an exposed kiosk, from self-service to point of information, this product offers MSR and camera peripherals to support a wide range of applications, making it a perfect form–fit–function solution for a variety of applications.

Featured Specifications

  • Size: 15.6 ” TFT LCD
  • Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
  • OS: Android 9.0 with GMS
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness: 450 nits (No Touch), 405 nits (P-CAP)
  • View Angle: H:178˚, V:178˚
  • Video Port: 1 x HDMI (1080p 60Hz support), 1 x USB 3.0 Type A, 1 x USB 3.0 Type C (OTG support), 1 x Micro SD Slot (SDHC 2.0 support)
  • Warranty: 3 year

Resources

Drivers Data Sheet Overview Flyer
User Manual
Schematic
Compliance Statements

Specifications

System Configuration

Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
GPU: Mali-T860 MP4
System Memory: 4GB LPDDR4
Storage Device: 32GB eMMC
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, Bluetooth 4.0 (Support BLE)
GPS: Enabled

Touch LCD Display

Size / Resolution: 15.6 ” TFT LCD / 1920 x 1080
Touch Screen: Projected Capacitive Touch, 10 Points
Brightness (Touch Type): 450 nits (No Touch), 405 nits (P-CAP)
Contrast Ratio: 1000:1
View Angle: H:178˚, V:178˚
Display Surface: 7H Hardness durable glass
Camera: –

I/O Ports

Serial Port: –
USB Port: 1 x USB 3.0 Type A, 1 x USB 3.0 Type C
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x HDMI (1080p 60Hz support)
Audio Port: 1 x Built-in Microphone
Power Input: 1 x DC in 12V/4.16A 2 pin
SD Slot: 1 x Micro SD Slot (SDHC 2.0 support)

Operating System Support

OS: Android 9.0 with GMS

Physical Properties

Speaker: 2 x 2W
Material: Plastic, Glass, SECC Metal
Light Bar: –
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 369.1 mm x 223.7 mm x 27.2 mm
Net Weight (kg): 1.805 kg
Gross Weight (kg) 2.8 kg
Carton (W x H x D) mm: 455 mm x 315 mm x 150 mm
VESA: 100 mm x 100 mm

Safety

Certifications: CE, FCC, LVD, UL, RoHS

Environment

Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing

Box Contents/What's in the Box

Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover

Optional Peripheral

MSR: MSR-156-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
15.6″ Slim Stand: SS-156-A1 (Sold Separately)

Optional/Replacement Accessories

50W Powers Supply | Adapter 12V 50W ADP-50YH BS W/Lock ERP: PS-3316005044F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
