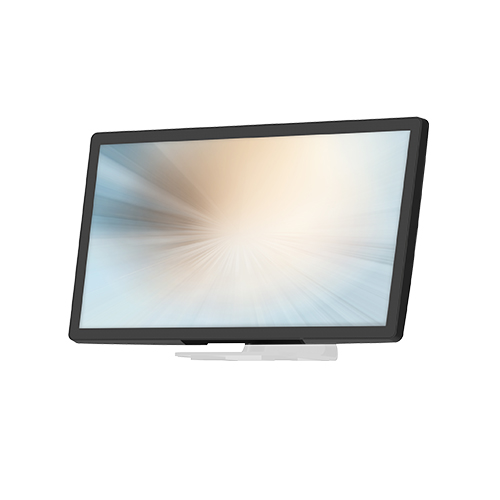

Model Number

DT-215P-A1

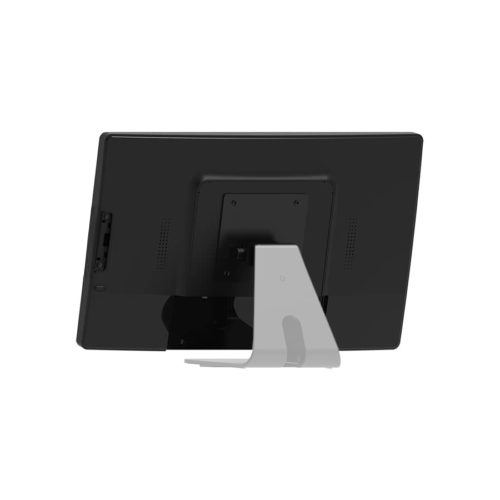

Stand sold separately

Description

The ultra-modern, unique zero bezel and modular design of the DT-215P-A1 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, Full HD 1920 x 1080 solution is great for retail point-of-sale or point-of-service with add-on features like 3 track MSR and a 2MP camera – one mounting location, the top. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.

Featured Specifications

  • Size: 21.5" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness: 250 nits (No Touch), 225 nits (P-CAP)
  • View Angle: H:178˚, V:178˚
  • Video Port: 1 x VGA, 1 x DP, 1 x HDMI
  • Warranty: 3 year

Resources

Drivers Data Sheet Overview Flyer User Manual Schematic Schematic Stand

Specifications

Touch LCD Display

Touch Screen: Projected Capacitive
Touch Points: 10
Touch Screen Interface: USB-C

I/O Ports

USB Port: 1 x USB Type C (Alt Mode for DP video support)
Video Port: 1 x VGA, 1 x DP, 1 x HDMI (up to 1920 x 1080 @60Hz)
Audio Port: 1 x Audio-Input (3.5 mm Mini-Jack)
Power Input: 1 x DC In 12V Jack Power Input
Other Port: 1 x RJ11 (for Remote Key)

Physical Properties

Power Supply: Max. 60W (12V/5A) External Power Adaptor (100VAC ~240VAC, 50/60Hz)
Speaker: 2 x 2W
Housing Color: Black
Construction: Glass, Plastic (ABS), SECC Metal
Compliance: –
Dimensions (W x H x D) mm: 510.96 x 308.01 x 37.9 mm (monitor only)
Net Weight (kg): 4.05 kg (monitor only)
Gross Weight (kg): 8.8 kg (monitor only)
Carton (W x H x D) mm: 615 x 405 x 160 mm (monitor only)
VESA: 100 x 100 mm
Ball Drop: –

Safety

Certifications: CE, FCC, LVD, UL/cUL, RoHS, UKCA

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 10% ~ 90% RH. Non-Condensing

Box Contents/What's in the Box

LCD Touch Monitor, Power Cord, DC Power Supply, HDMI Cable, OSD Remote Key, Display Port Cable, Screw and IO Cover

Optional Peripheral

MSR: MSR-215-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
21.5″ Slim Stand: SS-215-A1 (Sold Separately)
Slim Stand: SS-156-A1 (General Purpose Stand, Sold Separately)

Optional/Replacement Accessories

50W Powers Supply | Adapter 12V 50W ADP-50YH BS W/Lock ERP: PS-3316005044F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
Cable HDMI V2.0 A-A L1800 BK, A.3: HDMI-5313118134FH
Cable DP_DP V2 L1800 BK L1800 BK: DP-5313118123FV
Cable VGA PC99 1.8M BK V1: VGA-5313118072FH
