Model Number
MA-FRP-A1
Description

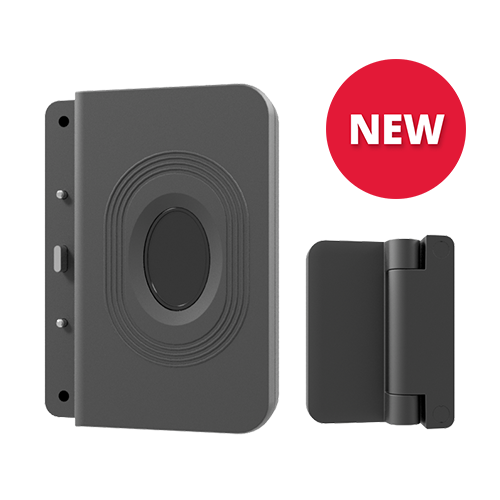

The new Mach MA-FRP-A1 is a state-of-the-art Fingerprint reader, meticulously engineered to integrate seamlessly with the Mach series. It features a versatile USB-C connection, allowing effortless connection to any side of a Mach monitor and AiO. This innovative Fingerprint utilizes optical fingerprint scanning technology to achieve excellent image quality, a large capture area and superior reliability. A silicone coating allows it to read a wide range of fingerprints accurately and rapidly regardless of placement angle.
Resources
Specifications
Compatibility: Mach AIO and Desktop
Reader Engine: HID® DigitalPersona® 4500 Fingerprint module
Technology: Optical fingerprint scanning
Output Image Resolution/Bit Depth: 500 dpi / 8-bit grayscale (256 gray levels)
Scan Capture Area: 14.6 mm (nom. width); 18.1 mm (nom. length)
Image Output Format: DigitalPersona Fingerprint Image, ISO 19794-4:2005; ANSI/INCITS 381-2004, Uncompressed Image Mode (raw), WSQ Compressed
Host Interface: USB 2.0
Interface Modes: CCID, Keyboard Wedge
Status Indicators: Yes
Supported Operating Systems: Windows, Android
Weight (Unpackaged): 0.3 kg
Weight (Packaged): 0.37 kg
Dimensions: 101.4 x 76.5 x 35.0 mm
Shipping Box Dimensions: 140 x 80 x 50 mm
Operating Temperature: 0°C to +55°C
Storage Temperature: -20°C to +80°C
Humidity Operating: 10% to 95% RH, non-condensing
Humidity Storage: 10% to 95% RH, non-condensing
Compliance: CE, FCC, ISED, CE RED (RF), RoHS, Reach
Warranty: 3 Year
