Model Number

M2-156P

15.6" Android POS System

  • M2-156PN-A15-A1 15.6” PCAP w/NFC + Stand w/HUB
  • M2-156P-D-A15-A1 15.6” PCAP + Stand w/HUB + 7” Customer Facing Display
  • M2-156P-DN-A15-A1 15.6” PCAP + Stand w/HUB + 7” Customer Facing Display (w/NFC)

Description

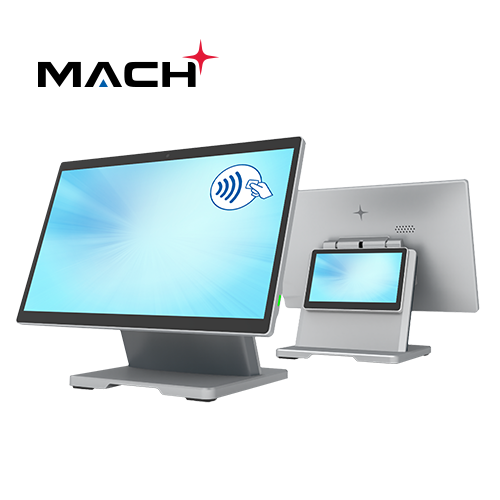

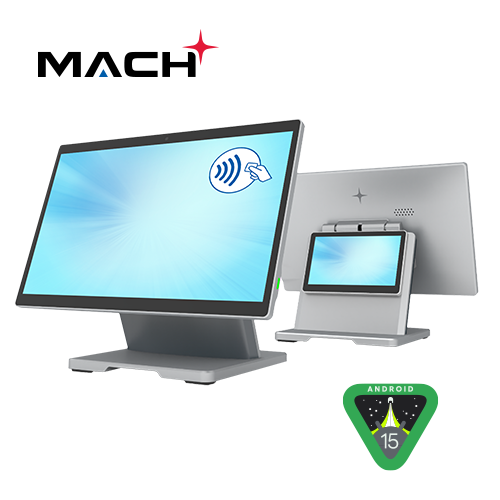

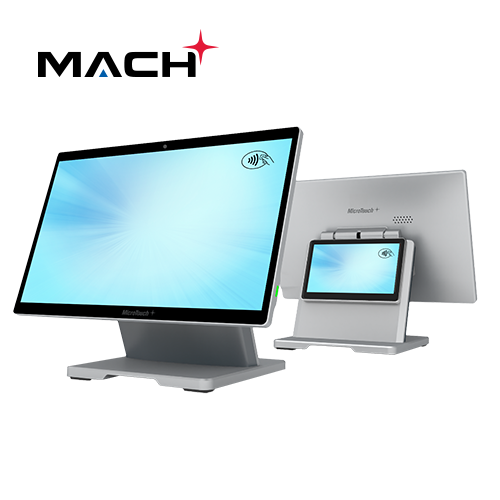

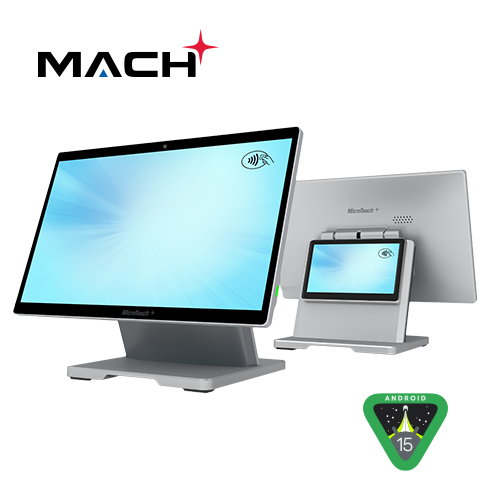

The Mach POS is a totally new design from MicroTouch featuring super thin and stylish 15.6” Touch screen mounted to a purpose-built base with integrated I/O ports. The design features an optional matching customer display that can attach to the base or sit on counter, creating a sleek and flexible POS countertop system.

And… Mach POS adds payment…both the main display and customer display can be configured with an NFC reader that is embedded BEHIND the LCD to allow for tap to pay on the screen. This NFC capability is enabled by a simple integration with any of the SoftPOS payment solutions in the marketplace.

In addition to stylish design and great features, this solution provides commercial-grade robustness plus incredible performance from MediaTek’s latest processor, the Genio 520. Like other Mach products, Mach POS is equipped with bright LED panels optically bonded to a 10-point touch sensor with etched anti-glare surface. This technology increases clarity, plus avoids distracting reflections and fingerprints.

The end result is a POS solution that looks great, performs great and can thrive in all store environments.

Featured Specifications

  • Size: 15.6” TFT LCD
  • Processor: MediaTek Genio 520 (10 TOPs for AI Applications)
  • OS: Android 15 GMS
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 700:1
  • Brightness: 450 nits
  • Power: 1 x 24V DC in Power Input
  • USB Ports: 1 x USB C for External Peripheral Device, Audio(Alt Mode) or 2nd HUB 1 x USB C for Head – Latching/Secured 1 x USB C for Integrated Customer Display (with Touch and NFC)
  • Warranty: 3 Year

Resources

Data Sheet Schematic

Specifications

System Configuration

Processor: MediaTek Genio 520 (10 TOPs for AI Applications)
System Memory: 8GB LPDDR5
Storage Device: 64GB eMMC5.1
Wi-Fi: WIFI6e
Bluetooth: BT5.2
Audio: 2 Watt Speaker
Sensors: Gyro for Auto Screen Rotation
Camera: 5MP Camera Front/Top

Touch Display - Primary

LCD: 15.6” TFT LCD
Resolution: 1920 x 1080 Resolution
Brightness: 450 nits
Contrast Ratio: 700:1
Viewing Angle: H 178 x V 178
Touch Screen: 10 Pt. PCAP Touch (Optically Bonded)
Surface Treatment: Etched Anti-Glare (AG)
Hardness: 7H Hardness Durable Glass

Operating System

OS: Android 15 GMS

I/O Ports (in the base)

Power Input: 1 x 24V DC in Power Input
Cash Drawer: 1 x 12V or 24V (Switchable)
Powered USB: 1 x 12V Latching USB, 1 x 24V Latching USB
Standard USB: 1 x 5V USB Type A
LAN: Ethernet RJ45 with LEDS for Signal
USB C: 1 x USB C for External Peripheral Device, Audio(Alt Mode) or 2nd HUB, 1 x USB C for Head – Latching/Secured, 1 x USB C for Integrated Customer Display (with Touch and NFC)

Optional Cellular

Integrated NFC Reader and antenna behind LCD glass. EMV 1 certified.

Physical Properties

Housing: Casting and Steel Chassis
Compliance: Front Panel IP65
Dimensions (W x H x D) mm: 364.1 x 290.4 x 190 mm
Net Weight (kg): 3.79 kg
Gross Weight (kg): 6.46 kg
Carton (W x H x D) mm: 445 x 380 x 285 mm
VESA via Adaptor Kit: 100 x 100 mm
Ball Drop / IK: IK07

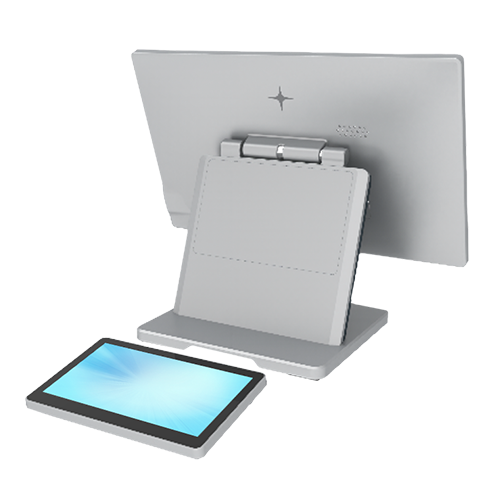

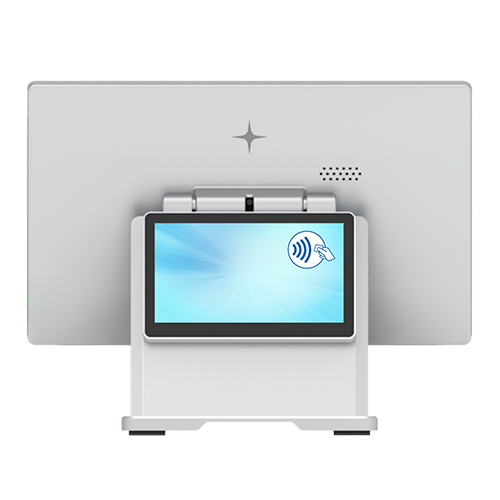

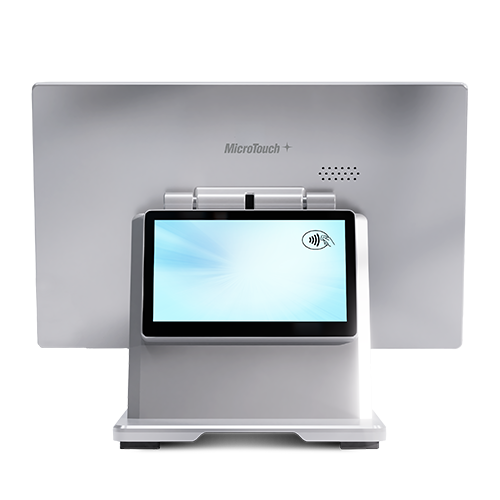

Customer Display (CFD)

LCD: 7” TFT LCD
Resolution: 1024×600
Brightness: 500 nits
Contrast: 800:1
Touch Screen: 10 Pt. PCAP Touch (Optically Bonded)
Surface Treatment: Etched Antiglare (AG)
Hardness: 7H Hardness Durable Glass

Safety

Certifications: CC, CE, NOM, UL, RoHS, FCC, EMV1

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 20% ~ 90% RH. Non-Condensing

MTBF

MTBF: 50,000 Hours Demonstrated
