Model Number

M1-215KD-AA3

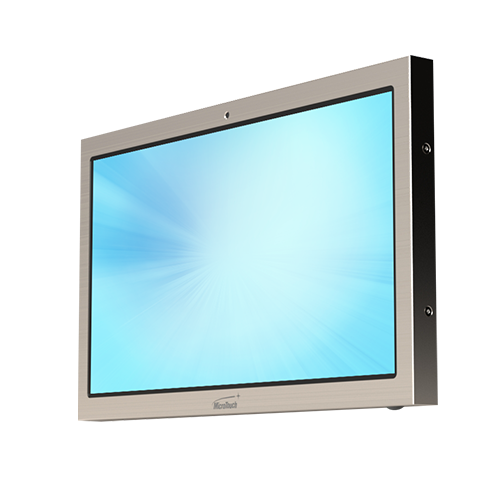

21.5” Android Stainless Steel Touch Computer

Description

The Mach M1-215KD-AA3 21.5” Android Stainless Steel touch computer is a high-performance, versatile, touch computer that combines commercial-grade robustness with a stainless-steel enclosure. This built for purpose computing platform features MediaTek’s latest powerful processor, the Genio 700 (MT8390). The Mach M1-215KD-AA3 is equipped with a bright 21.5”, full HD, 8-bit, LED panel. It features a projected capacitive, 10-point touch sensor and advanced optical bonding with an etched anti-glare surface. This technology increases clarity and viewing angle, while simultaneously reducing distracting reflections and fingerprints. The result is the hardened enclosure you want, the superior performance you need and the versatility for kitchen systems and industrial applications.

Featured Specifications

  • Size: 21.5” TFT LCD
  • Processor: MediaTek Genio 700 (MT8390)
  • OS: Android 13 GMS, Upgradable Android 15 GMS
  • Connectivity: Wi-Fi, Bluetooth
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness: 350 nits
  • Power: 12v DC, POE (60W/90W), USB-C PD
  • USB Ports: 2 x USB-C (USB 3.0, PD 5
  • Warranty: 3 Year

Resources

Data Sheet Series Flyer Schematic

Specifications

System Configuration

Processor: MediaTek Genio 700 (MT8390)
GPU: Mali-G57 MC3
APU: 1 x MDLA3.0 + 1 x VP6
System Memory: 8GB
Storage Device: 64GB eMMC
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 (Support BLE)

Touch LCD Display

Touch Screen: Projected Capacitive, 10 points
Brightness: 350 nits (No Touch), 315 nits (PCAP)
Surface Treatment: Etched Anti-Glare, Optical Bonding
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
View Angle: H: 178˚, V: 178˚
Hardness: 7H Hardness durable glass

I/O Ports

USB Port: 2 x USB-C (USB 3.0, PD 5V/12V@3A, DP-Alt mode) 1 x USB-A (USB 3.0)
LAN Port: 1 x RJ45 Gigabit LAN
POE: 60W/90W
Audio Port: 1 x Audio-Output / Mic Input (3.5 mm Mini-Jack)
Power Input: 12V DC

Operating System

OS: Android 13 GMS, Upgradable Android 15 GMS

Physical Properties

Speaker: 2 x 2W Stereo
Camera: 5 MP Front Facing
Housing: Stainless Steel
Construction: Plastic, Glass, SECC Metal
Compliance: Front Panel IP65 Compliant
Net Weight (kg):  6.6 kg
Gross Weight (kg):  8.3 kg
VESA: 100 x 100 mm
Ball Drop / IK: IK07

Safety

Certifications: CC, CE, UL, RoHS

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 20% ~ 90% RH. Non-Condensing
