Model Number

M1-156IC

  • M1-156IC-AA2 Without Stand
  • M1-156IC-AA3 POE
  • M1-156IC-AA4 Cellular
  • M1-156IC-AA5 NFC
  • Double-Hinged Stand Sold Separately

Description

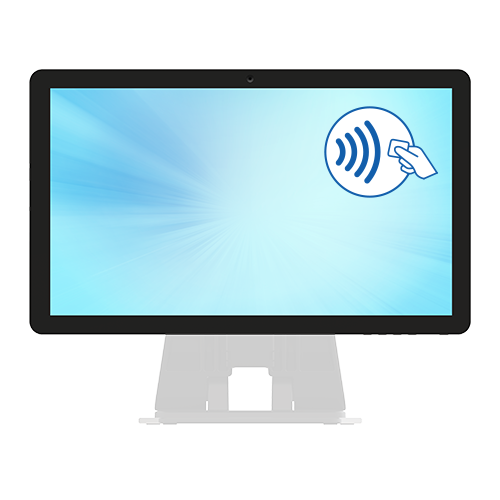

The Mach M1-156IC 15.6” Android All-in-One is a high-performance computer with integrated touch screen combing flexible design and commercial grade robustness for use in any retail or hospitality environment. This purpose-built compute platform features MediaTek’s powerful Genio 700 (MT8390) processor. The Mach AIO is equipped with a bright 15.6”, full HD, LED panel , optically bonded to the 10-point projective capacitive touch sensor with etched anti-glare surface. This technology increases clarity and viewing angle, while simultaneously reducing distracting reflections and fingerprints. Mach also features Smart peripherals interface ports for 2D bar code scanner, LED status bar, 8MP camera, MSR, fingerprint reader and external payment devices. Plus, we now offer an NFC reader integrated behind the glass to enable “Tap to Pay” with no external devices required. Our EMV 1 certified reader easily integrates with all SoftPOS providers using Android’s Native Command Interface.

In addition to the NFC option, customers can select Power over Ethernet( POE ++) and 4G LTE Cellular options. The result is a full featured, flexible platform with the superior performance

Featured Specifications

  • Size: 15.6" TFT LCD
  • Processor: MediaTek Genio 700 (MT8390)
  • OS: Android 13 GMS, Upgradable Android 15 GMS
  • Connectivity: Wi-Fi, Bluetooth, Optional 4G LTE
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness: 450 nits (No Touch), 400 nits (PCAP)
  • Power: 12v DC, POE (60W/90W), USB-C PD
  • USB Ports: 1 x USB-A 3.0, 1 x USB-C (PD in 12V@5A+USB 2.0), 1 x USB-C (PD out 12V@3A+USB 2.0), 4 x USB-C (Peripheral Connection)
  • Payments: Optional NFC Tap to Pay (integrated behind the glass)
  • Warranty: 3 year

Specifications

System Configuration

Processor: MediaTek Genio 700 (MT8390)
GPU: Mali-G57 MC3
AI Processor: 1 x MDLA3.0 + 1 x VP6
System Memory: 8 GB
Storage Device: 64 GB eMMC
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 (Support BLE)

Touch LCD Display

Touch Screen: Projected Capacitive, 10 points
Brightness: 450 nits (No Touch), 400 nits (PCAP)
Surface Treatment: Etched Anti-Glare, Optical Bonding
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
View Angle: H: 178˚, V: 178˚
Hardness: 7H Hardness durable glass

I/O Ports

USB Port: 1 x USB-C (PD in 12V@5A+USB 2.0), 1 x USB-C (PD out 12V@3A+USB 2.0), 4 x USB-C (Peripheral Connection), 1 x USB 3.0 Type A
LAN Port: 1 X RJ45 Gigabit Lan
Video Port: 1 x HDMI (up to 1920 x 1080 @60Hz)
Audio Port: 1 x Audio-Output /Mic Input (3.5 mm Mini-Jack)
Power Input: 12V DC
POE: Optional (60W/90W)

Operating System

OS: Android 13 GMS, Upgradable Android 15 GMS

Physical Properties

Speaker: 2 x 2W Stereo
Orientation: Portrait/landscape/tabletop
Camera: 2.5 MP Front Facing
Housing Color: Black
Construction: Plastic, Glass, SECC Metal
Compliance: Front Panel IP65 Compliant
Dimensions (W x H x D) mm: 378.03 x 227.34 x 32 mm (without stand)
Carton (W x H x D) mm: 443 x 293 x 156 mm (without stand)
Weight (kg):  2.04 kg (without stand)
Weight (kg):  4.29 kg (carton, without stand)
VESA: 100 x 100 mm
Ball Drop/IK: IK07

Safety

Certifications: CE, FCC, UL/cUL, NOM, RoHS, UKCA, RCM, PSE

Environment

Operating Temperature: 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20˚C ~ 60˚C, 20% ~ 90% RH. Non-Condensing

Optional Cellular

Network Connectivity: 4G LTE, UMTS, GMS
Carrier: Unlocked, SIM Card Not Provided
Carrier Certifications: Verizon, AT&T, Sprint, US Cellular, T-Mobile, Rogers, Telus, Deutsche Telekom

Optional NFC

Integrated NFC reader and antenna behind LCD glass. EMV 1 certified

Optional Peripheral

MSR: MA-MSR-A1
Camera: MA-CAM-A1
Light Bar: MA-LBAR-A1
Bar Code Scanner: MA-SCAN-A1

BOX CONTENTS

LCD Touch computer, AC Power Cord, AC-DC converter, Cable Cover
